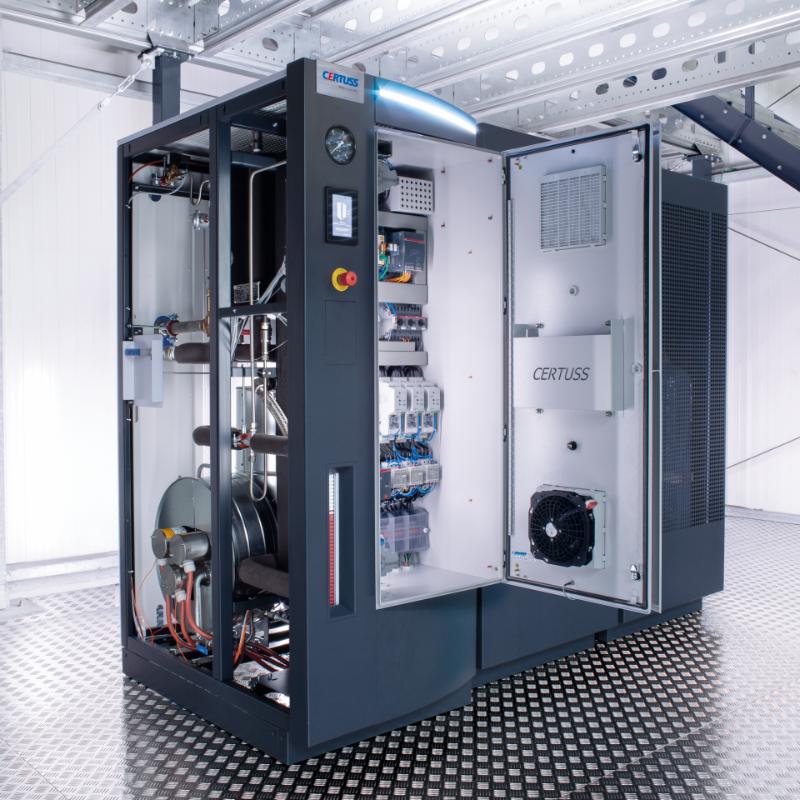

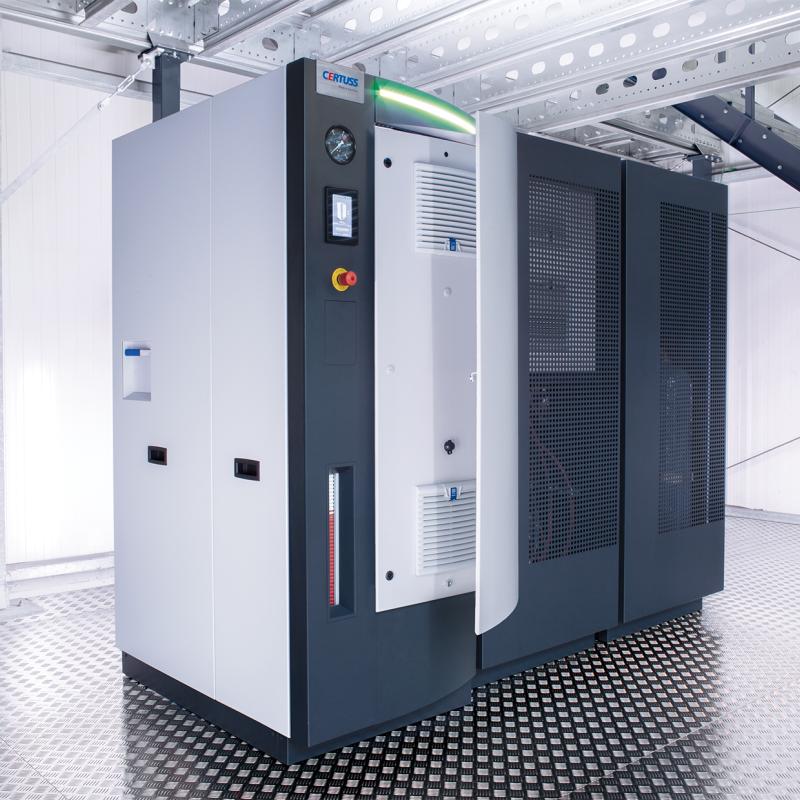

EMX - electric steam boilers

With the new EMX range of electric steam generators, CERTUSS delivers twice the steam output of previous models – while taking up significantly less space.

Benefits of the new generation E:

- Steam output from 10 to 320 kg/h, continuously adjustable
- Full steam output ready 3–5 minutes after start-up
- Long service life and robust construction
- Fully automatic operation for up to 72 hours
- High process reliability and the option of remote servicing
- In stainless-steel construction, the ELEKTRO steam generators are also suitable for producing clean steam

Compact and space-saving
The compact design cuts the space requirement by up to 25%. The unit’s dimensions fit through a standard doorway (80 cm) for efficient installation.

Easy control via the Human–Machine Interface
The new interface ensures simple, intuitive operation in 16 languages.
It also enables condition monitoring and remote service, meeting all Industry
4.0 requirements.

Easy access for easier maintenance
Flexible access points make maintenance quick and straightforward.

High efficiency with optional installation
The optional, integrated MX-CPA water module streamlines installation and helps cut costs. Fully automatic 72-hour operation boosts efficiency.

Cost-effective and powerful
- Compact, space-saving electric steam generator system
- With integrated feedwater tank and feedwater pump
- Ideal for installation and operation in work areas
- Cost-efficient operation, as the operating pressure for the E 72 model range can be adjusted continuously
- CERTUSS electric steam generators are heated by stainless-steel heating elements with a large heating surface
- An energy-saving advantage is the modulating power control, which adapts to current steam demand during operation
- For higher or fluctuating steam demand of up to 640 kg/h, multiple ELEKTRO steam generators can be connected in series in a cascade system
- These multi-unit systems are particularly economical
