Auto-line© R Automatic Filters MLR

arrow_backTo the overview

HiFlux Filtration A/S

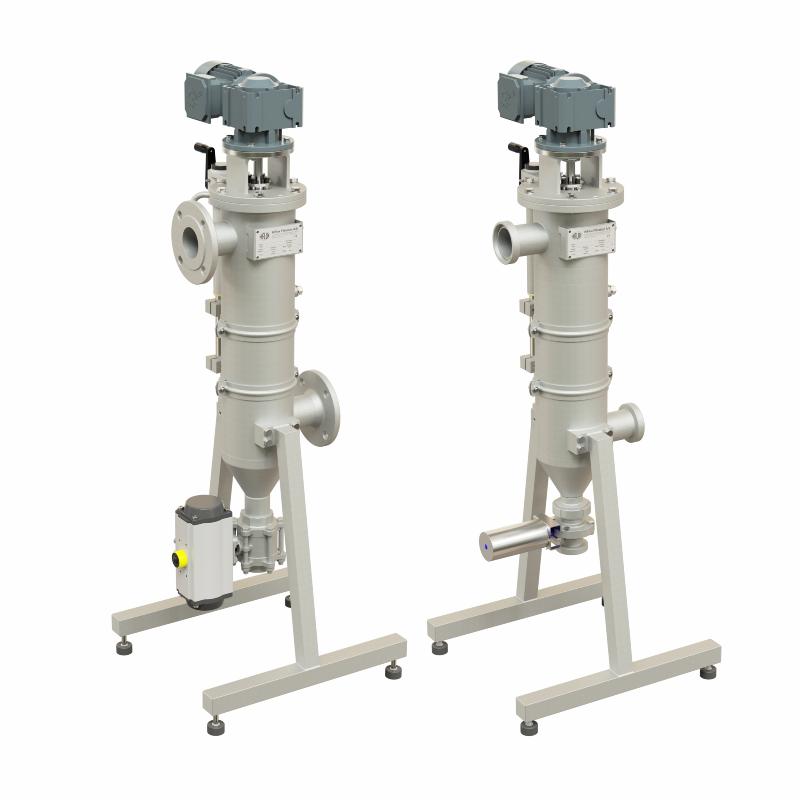

HiFlux Auto-line filters are designed as compact self-cleaning automatic filters with a wide range of applications for various types of liquids. The sturdy construction of the filter makes it well suited for industrial and hygienic applications in which operational reliability and dependability are essential.

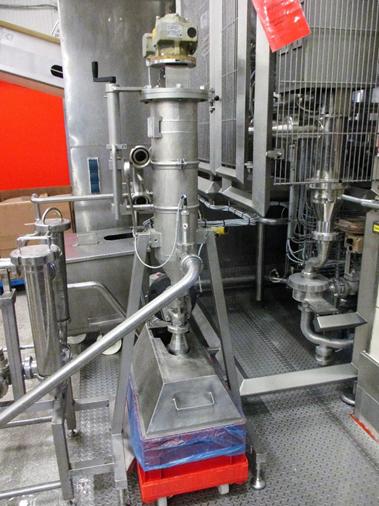

The industrial Auto-line filter is used in many sectors such as paint, cooling water, waste water, technical water, heat exchanger, chemicals, resins and energy sector. The hygienic Auto-line filter is used in sectors such as: various cheese products, chocolate, coffee, honey, egg, beverage, oil and fats, sugar and CIP liquids.

The Auto-line filter is used when an automatic continuous cleaning process is required. The impurities are being concentrated in the filter, until it is drained away, while the filter is still in operation the liquid loss due to cleaning is minimal.

The Auto-line filters are also available as R-E versions, where the scraping process is driven by an electric gear-motor or as the P version, where the scraping process is driven by a pneumatic actuator. The E filter versions has an extended pneumatic cylinder, so that cross contamination between the liquid to be filtered and the pneumatic system is avoided.

In the design of the filter it was very important to make the construction robust and reliable. By limiting the number of moving components, wear and maintenance requirements are minimized. The simple construction makes the filter very easy to service, since there is no need for external service assistance or special tools. Furthermore, the compact design of the filter is making it suitable for locations, where the height is a limitation.

Special versions can be supplied according to customer requirements.
Typically different connections, temperature and pressure levels.

More products from HiFlux Filtration A/S


This product can be seen at the exhibition.

This product can be seen at the Exhibition

This product is added by:

HiFlux Filtration A/S

HiFlux Filtration A/S is a Danish company that for over 65 years has specialised in providing customised filtration solutions for liquids for the process industry, as well as the food and energy sectors. The focus is on the development and manufacture of liquid filters. Advice, problem solving, assembly and service are important elements of the company's activities. HiFlux Filtration A/S has distributors all over Europe and a branch office in the Netherlands.

See profile
